Tools and jackTools and jack  - For emergencies - Mitsubishi Carisma Owner's Manual - Mitsubishi Carisma

The storage location of the tools and jack should be remembered in case of an

The storage location of the tools and jack should be remembered in case of an emergency.

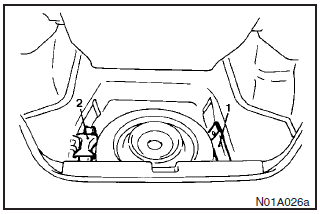

Location

1- Tools
2- Jack

Tools

Tools

1- Tool bag
2- Wheel nut wrench
3- Bar

Jack

Jack

1- To remove

Turn the shaft end so that the jack retracts and detach it from fixing bracket (A).

2- To store

Turn the shaft end by hand to expand the jack until it is secured firmly in position.
