High–mounted stop lampHigh–mounted stop lamp - Replacement of lamp bulbs - For emergencies - Mitsubishi Carisma Owner's Manual - Mitsubishi Carisma

Hatchback

Hatchback

Place the groove of clip top as shown, then remove the cover.

Undo bolts (A), remove the lamp body, and disconnect the connector.

Undo bolts (A), remove the lamp body, and disconnect the connector.

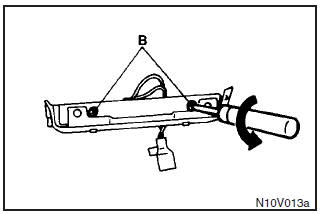

Undo screws (B) and take the bulb out of its socket.

Undo screws (B) and take the bulb out of its socket.
