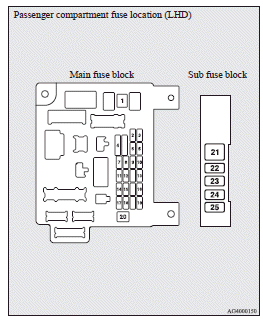

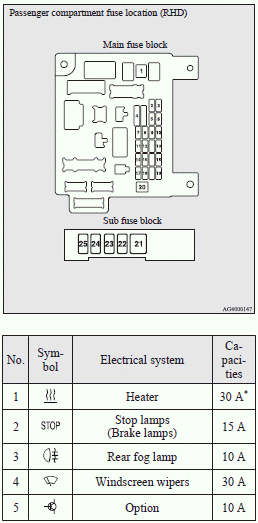

Passenger compartment fuse location tablePassenger compartment fuse location table - Fuse load capacity - Fuses - Maintenance - Mitsubishi Lancer Owner's Manual - Mitsubishi Lancer

Mitsubishi Lancer / Mitsubishi Lancer Owner's Manual / Maintenance / Fuses / Fuse load capacity / Passenger compartment fuse location table

► Spare fuses are provided on the lid of the fuse block in the engine compartment. Note

► Spare fuses are provided on the lid of the fuse block in the engine compartment. Always use a fuse of the same capacity for replacement.

: Fusible link

: Fusible link

► Some fuses may not be installed on your vehicle, depending on the vehicle model or specifications.

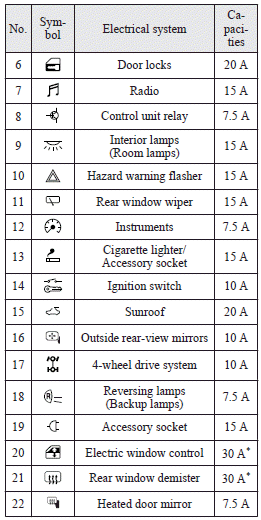

► The table above shows the main equipment corresponding to each fuse.
