Display unit selectionDisplay unit selection  - Digital clock - Instruments and controls - Mitsubishi Carisma Owner's Manual - Mitsubishi Carisma

Originally, km/h and L/100 km are selected. When you want to select the unit

Originally, km/h and L/100 km are selected. When you want to select the unit “mile”, follow this procedure.

NOTE

For vehicles without MITSUBISHI genuine audio system, only the unit of average fuel consumption can be changed to km or miles as you like.

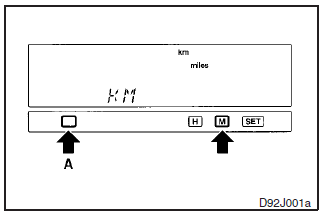

1. Press the “M” button while pressing the button (A) to activate the display unit selection function. The currently selected unit will appear.

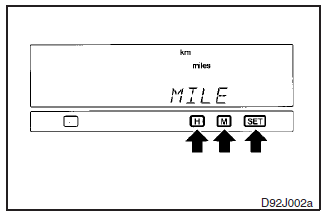

2. Use the “H” or “M” button to select the desired speed unit, then press the

2. Use the “H” or “M” button to select the desired speed unit, then press the “SET” button to enter the setting.

H- km
M- mile

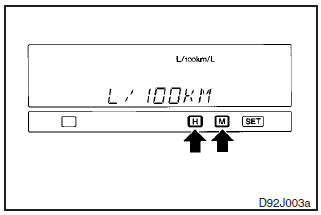

3. If the km unit was selected in step 2, the fuel consumption unit must be selected

3. If the km unit was selected in step 2, the fuel consumption unit must be selected continuously using the “H” or “M” button. The currently selected unit will appear.

Use the “H” or “M” button to select the desired fuel consumption unit, then press the “SET” button to enter the setting.

H- L/100 km
M- km/L

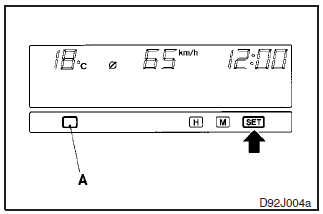

4. Press the “SET” button to determine the setting. The display will return to

4. Press the “SET” button to determine the setting. The display will return to the original display item.

NOTE

(1) For vehicles without a MITSUBISHI genuine audio system, only the unit of fuel consumption can be changed to km or miles as you like.
(2) If you select “M” (mile) unit in step 2, fuel consumption is automatically shown in “mpg (mile per gallon)”.
(3) To cancel the unit setting procedure before completion, press the button (A).
(4) The outside temperature and clock are not shown during the unit selecting procedure.
(5) If the “SET” button is not pressed for about 15 seconds or longer in the middle of the selection, the currently selected unit is set automatically. Then, the display returns to the original display item.
