Selector lever operationSelector lever operation  - Automatic transmission INVECS–II 4A/T, Sports Mode 4A/T (Intelligent & Innovative
Vehicle Electronic Control System II) - Starting and driving - Mitsubishi Carisma Owner's Manual - Mitsubishi Carisma

Except for vehicles with Sports mode

Except for vehicles with Sports mode

The transmission has 4 forward gears and 1 reverse gear.

The individual gears are selected automatically, depending on the position of the gear selector lever, the speed of the vehicle and the position of the accelerator pedal.

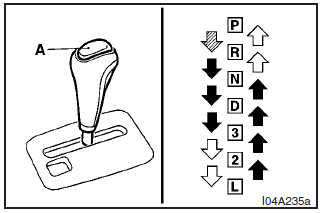

The selector lever has 7 positions, and is equipped with a lock button (A) to avoid inadvertent selection of the wrong gear.

and brake pedal must be depressed to move the leverButton must be pushed and brake pedal must be depressed to move the lever

to move the lever.Button must be pushed to move the lever.

to move the lever.Button need not be pushed to move the lever.
