This radio may be connected to the MITSUBISHI Genuine CD player or CD autochanger.

This radio may be connected to the MITSUBISHI Genuine CD player or CD autochanger.

Consult an authorized MITSUBISHI dealer for more details.

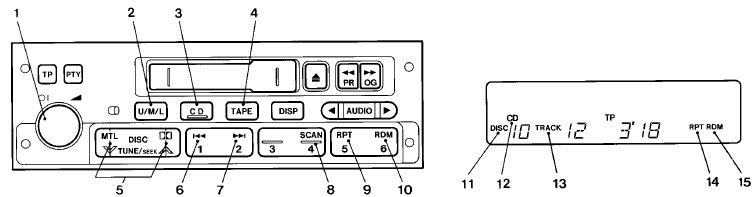

1- PWR (On-off switch)
2- U/M/L button
3- CD (CD mode changeover) button
4- TAPE button
5- DISC (Disc selection) button
6- (Track up) button 8- SCAN button(Track down) button
7- 9- RPT (Repeat) button 10- RDM (Random) button 11- DISC indicator* 12- CD (Track up) button
8- SCAN button
9- RPT (Repeat) button
10- RDM (Random) button
11- DISC indicator*
12- CD indicator
13- TRACK indicator
14- RPT (Repeat-mode) indicator
15- RDM (Random-mode) indicator

To listen to a CD

1. Press the CD button (3) and the CD mode will be selected, starting playback.

NOTE

If the system is equipped with CD autochanger, press the DISC button (5), to select another disc. Every time the side of the DISC button is pressed, the next disc is selected. Every time the side of the button is pressed, changeover to the previous disc is made.

2. To adjust the volume and tone, refer to the section “How to adjust the volume” and “How to adjust the tone” on page 6–4.
3. To stop the CD, turn off the power by pressing the PWR switch (1) or make changeover to the other mode by pressing the TAPE button (4) or U/M/L button (2).
4. For information concerning the handling of compact discs, refer to the section “Handling of compact discs” on page 6–27.

To find the start of a desired track

The start of each track on a disc can be found by using the button (6 or 7). or Track up: button (6 or 7).

Track up:

Press the of tracks to skip over. button (7) the number of tracks to skip over.

The frequency-display window will display the number of tracks thus selected.

Track down:

Press the of tracks to skip over. button (6) the number of tracks to skip over.

The frequency-display window will display the number of tracks thus selected.

How to repeat the same track

You can repeatedly listen to the same track by pressing the RPT button (9).

Press the RPT button, and the RPT indicator (14) will come on.

To release, press the button again.

To change the order of tracks played back (For CD player)

Press the RDM button (10), and the RDM indicator (15) will illuminate and tracks for playback will be randomly selected. To release, press the button again.

To change the order of discs played back (For CD autochanger)

Press the RDM button (10), and the RDM indicator (15) will illuminate and random tracks for playback will be selected randomly from all discs loaded into the autochanger. To release, press the button again.

How to use the SCAN button

Use the SCAN button (8) to search for a particular track, etc. When this button is pressed, the first 10 seconds of each track on the disc will be played.

The disc will advance at fast-forward speed between each 10-second played in this way. Press the SCAN button again, to play the track ordinary. After completion of this scanning of tracks, the disc will begin ordinary play.
