CAUTION

CAUTION

For safety, make sure you have a clear view through all windows.

To remove frost or mist from the windscreen and door windows, use the mode selection dial (“” or “”).

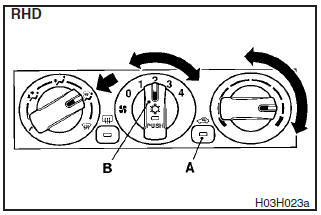

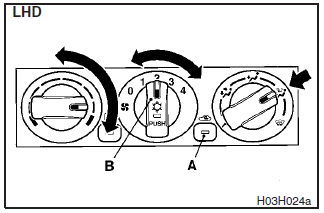

- To keep the windscreen and door

windows clear of mist, and to keep leg area heating (when driving in rain or snow). - To keep the windscreen and door windows clear of mist, and to keep leg area heating (when driving in rain or snow).

1- Set the air selection switch (A) to the outside position.
2- Set the mode selection dial to the “3- Select the desired blower speed by turning the blower speed selection dial.” position.
3- Select the desired blower speed by turning the blower speed selection dial.
4- Select the desired temperature by turning the temperature control dial.
5- Push the air conditioning switch (B). (vehicles with air conditioning)

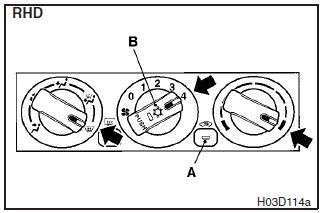

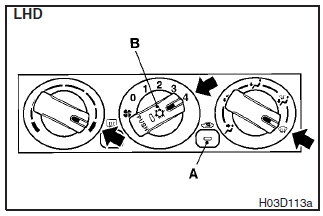

- For quick demisting

1- Set the air selection switch (A) to the outside position. 2- Set the mode- For quick demisting

1- Set the air selection switch (A) to the outside position.
2- Set the mode selection dial to the “3- Set the blower speed to the maximum speed position. 4- Set the temperature” position.
3- Set the blower speed to the maximum speed position.
4- Set the temperature to the maximum temperature position.
5- Push the air conditioning switch (B). (vehicles with air conditioning)

NOTE

NOTE

(1) To demist effectively, direct the air flow from the side ventilators towards the door windows.
(2) Do not set the temperature control dial around the max. cool position. Cool air will blow against the window glasses and form mist on them.
