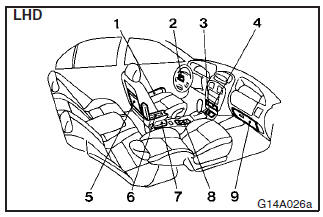

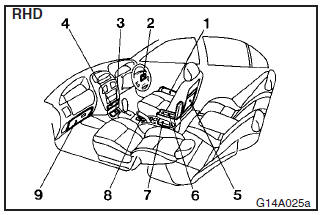

Accessory boxes
Various small articles can be kept in here.
1- Door pocket
2- Sunglasses pocket
3- Tray
4- Centre accessory box
5-
Seat back pocket
6- Armrest tray*
7- Centre console box*
8- Cup holder
9-
Glove box
