HeadlampsHeadlamps  - Replacement of lamp bulbs - For emergencies - Mitsubishi Carisma Owner's Manual - Mitsubishi Carisma

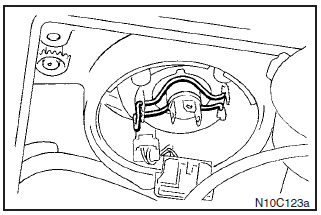

Unhook the spring which secures the bulb, and then remove the bulb.

Unhook the spring which secures the bulb, and then remove the bulb.

CAUTION

CAUTION

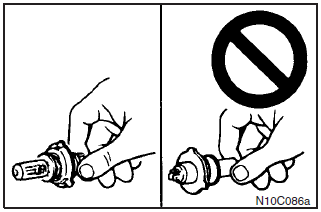

Never hold the halogen lamp bulb with a bare hand, dirty glove, etc. The oil from your hand could cause the bulb to break the next time the headlamps or position lamps are operated.

If the glass surface is dirty, it must be cleaned with alcohol, paint thinner, etc., and refit it after drying it thoroughly.
