Front turn–signal lamps

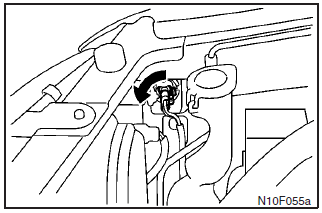

Petrol–powered vehicles, Diesel–powered vehicles (right side)
Turn the bulb socket anticlockwise to remove. And remove the bulb from the socket by turning anticlockwise while pressing it inward.

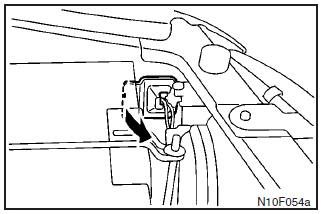

Diesel–powered vehicles (left side)
1. Remove the cover.

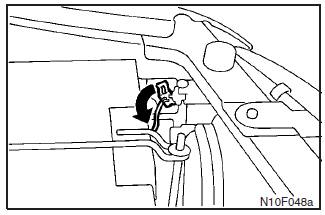

2. Turn the bulb socket anticlockwise to remove it. And remove the bulb from the socket by turning anticlockwise while pressing it inward.
