Change of mode selectionChange of mode selection - Automatic air conditioning* - For pleasant driving - Mitsubishi Carisma Owner's Manual - Mitsubishi Carisma

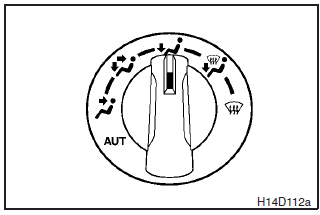

The mode selection dial is operated according to the need.

The mode selection dial is operated according to the need.

Turn the dial and the air outlet will be changed.

Air flow indicator (A) is displayed in the multi centre display.

Air flow indicator (A) is displayed in the multi centre display.

A: From front and side demister B: From centre and side ventilators C: From

A: From front and side demister
B: From centre and side ventilators
C: From under the instrument panel
D: From under the front seat

Air flows to the upper part of the passenger compartment.(Face position)

Air flows to the upper part of the passenger compartment.

Air flows to the upper part of the passenger compartment, and the leg area.(Foot/Face position)

Air flows to the upper part of the passenger compartment, and the leg area.

Air flows to the leg areas.(Foot position)

Air flows to the leg areas.

Air flows to the leg area, windscreen and door windows.(Foot/demister position)

Air flows to the leg area, windscreen and door windows.

Air flows to the windscreen and the door windows.(Demister position)

Air flows to the windscreen and the door windows.

NOTE

Air always flows out from the centre and side ventilators regardless of the mode selection dial position.
