Instruments and controlsInstruments and controls - Overview - Mitsubishi Lancer Owner's Manual - Mitsubishi Lancer

1. Ventilators

1. Ventilators
2. Front passenger’s airbag OFF indication lamp
3. Gearshift or selector lever
4. Supplemental restraint system - airbag (for front passenger’s seat)
5. Front passenger’s airbag ON-OFF switch
6. Glove box
USB input terminal
7. Cup holder
8. Moveable ashtray
9. Heated seat switch
10. Floor console box
11. Accessory socket
12. Reversing sensor system
13. Parking brake lever
14. Fuel tank filler door release lever

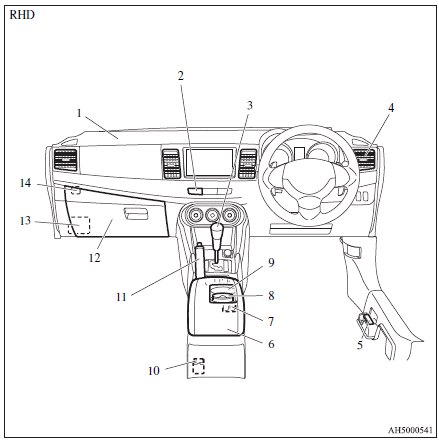

1. Supplemental restraint system - airbag (for front passenger’s seat)

1. Supplemental restraint system - airbag (for front passenger’s seat)
2. Front passenger’s airbag OFF indication lamp
3. Gearshift or selector lever
4. Ventilators
5. Fuel tank filler door release lever
6. Floor console box
7. Heated seat switch
8. Moveable ashtray
9. Cup holder
10. Accessory socket
11. Parking brake lever
12. Glove box
USB input terminal
13. Fuse
14. Front passenger’s airbag ON-OFF switchCentre panel
